Hydraulic Butt-Fusion Welding Machines Wholesale

Home / Products / Hydraulic Butt-Fusion Welding Machines / CH-H800 PE Plastic Hydraulic Butt-Fusion Welding Machines

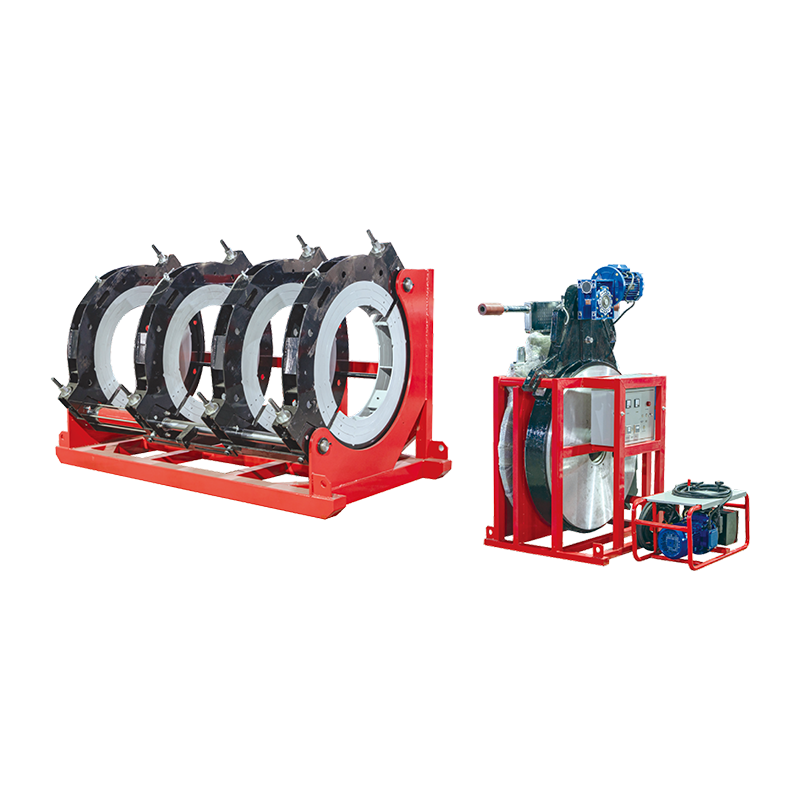

CH-H800 PE Plastic Hydraulic Butt-Fusion Welding Machines

CH-H800 PE Plastic Hydraulic Butt-Fusion Welding Machines

Purpose and Characteristics:

● Suitable for butt welding of plastic pipes made of HDPE, PVDF and MPP in worksite of workshop.
● Consists of basic frame hydraulic unit, planina too,heatina plate support for olanina tool& heatina plate and optional parts.
● Removable PTFE coated heating plate with high accurate temperature control system.
● Electric planning tool with safety limit switch enables to start it only when it is locked in operation position.
● Slant design for basic frame.
● Low starting pressure and high reliable seal structure.
● Changeable welding position brings more convenience while welding various fittings.
● Separate two-channel timer records times in soaking and cooling phases.
● High-accurate and shockproof pressure meter indicates clearer readings.

Model CH-H800 Hydraulic (Iron Fixture) CH-H800 Hydraulic
Welding Specifications(mm) (500,560)630,710,800 (500,600)630,710,800
Pressure Adjustment Range(MPa) 0-10 00-10
Total Power(KW) 16.2 16.2
Voltage/Frequency(V/Hz) 380/50   380/50
Heating Plate Power(KW) 12.5 12.5
Milling Cutter Power(KW) 2.2 2.2
Hydraulic Station Power(KW) 1.5 1.5
Total Weight(KG) 1300 1300
The Machine Frame Packing Size 213*122*130 213*122*130
Milling Cutter/The Heating Plate Packing Size 130*90*160 130*90*160
Control Box Packing Size 67*50*50 67*50*50
