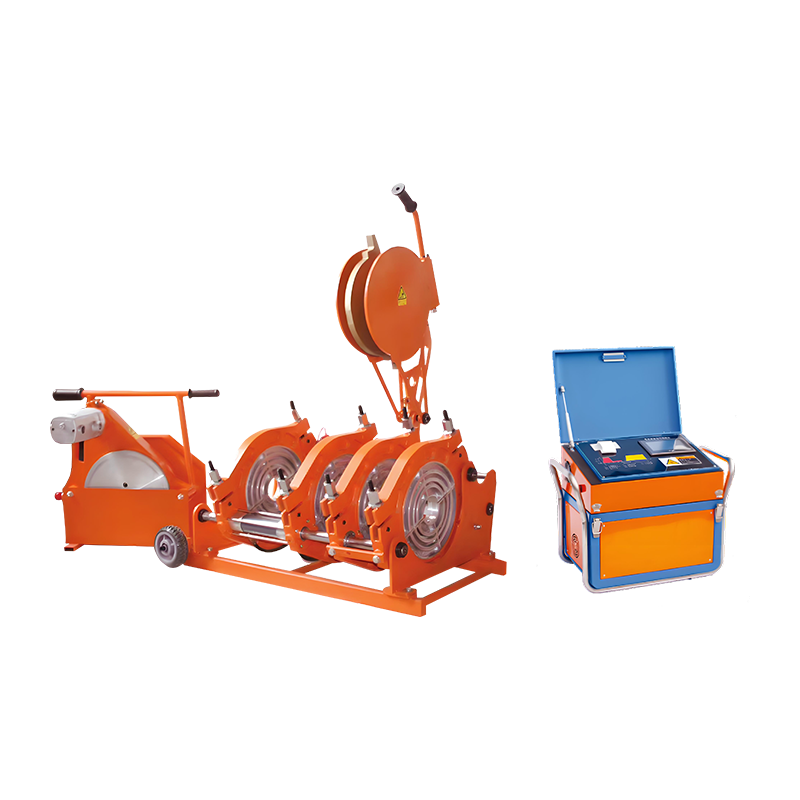

CH-A250 PE Plastic Automatic Butt Welding Machine

CH-A250 PE Plastic Automatic Butt Welding Machine

Purpose and Characteristics:

● Suitable for butt welding of plastic pipes made of HDPE、 PVDF and MPP in worksite or workshop.
● Consists of basic frame, hydraulic unit, planing tool heating plate support for planing tool& heating plate and optional parts.
● Real-time data printing, record function and USB port available.
● <DVS2207-1> serving as system-default welding standard. Moreover customized welding standard available.
● Standard is equipped single ciamps for enhancing alignment accuracy.
● Focus on humanizde design and detailed operation reminder enables operator to easily famliar with welding process.

Model CH-A250 Fully Automatic
Welding Specifications(mm) 90,110/160,160/200,200/250
Pressure Adjustment Range(MPa) 0-6.3
Total Power(KW) 5.45
Voltage/Frequency(V/Hz) 220
Heating Plate Power(KW) 2.2
Milling Cutter Power(KW) 2.5
Hydraulic Station Power(KW) 0.75
Total Weight(KG) 200
The Machine Frame Packing Size 121.5*69*56.5
Milling Cutter/The Heating Plate Packing Size 61.5*59*44.5
Control Box Packing Size 74.5*46*58
